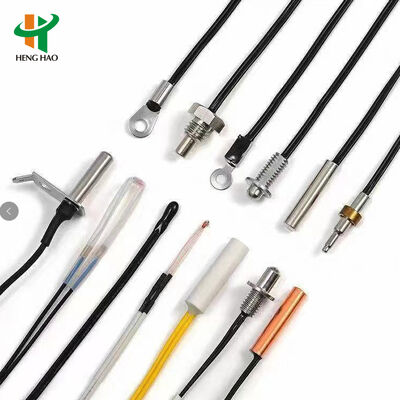

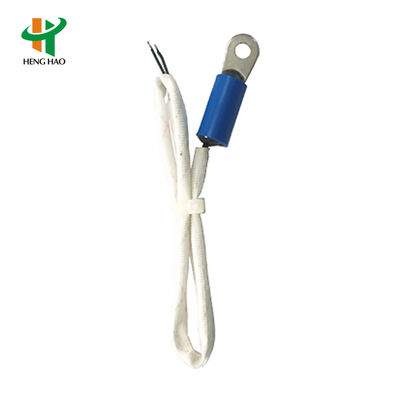

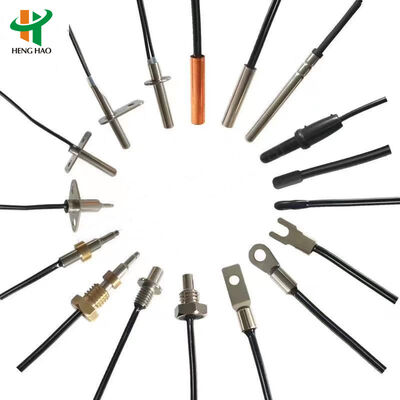

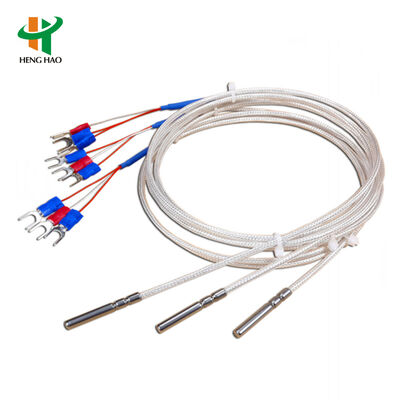

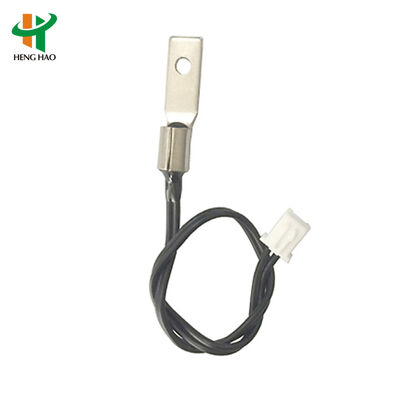

Temperature Sensor Ntc Temperature Probe 10K 100K Platinum Resistor

Temperature Sensor Ntc Temperature Probe 10K 100K Platinum Resistor
Temperature Sensor Ntc Temperature Probe 10K 100K Platinum Resistor Temperature Sensor Ntc Temperature Probe 10K 100K Platinum Resistor Temperature Sensor Ntc Temperature Probe 10K 100K Platinum Resistor Temperature Sensor Ntc Temperature Probe 10K 100K Platinum Resistor Temperature Sensor Ntc Temperature Probe 10K 100K Platinum Resistor Temperature Sensor Ntc Temperature Probe 10K 100K Platinum Resistor

Gambar besar :  Temperature Sensor Ntc Temperature Probe 10K 100K Platinum Resistor

Detail produk: Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1.000
Harga: 0.5
Kontak

Temperature Sensor Ntc Temperature Probe 10K 100K Platinum Resistor

Deskripsi
Nomor Model.: NTC Siklus hidup: 100000 siklus
Voltase: 250v Saat ini: 16a
Jenis kontak: biasanya ditutup atau biasanya terbuka Jenis sakelar: reset otomatis atau reset manual
Kisaran Suhu: 0-250 ℃ Spesifikasi: 12*16
Resistansi Nominal: 5k, 8k, 10k, 15k hingga 100k Varians Resistensi: ± 1, ± 2, ± 3, ± 5, ± 10
Koefisien material: 2500 ~ 5000K Koefisien disipasi: ≥0,8mw/ºC
Konstanta waktu termal: ≤25s Suhu kerja: -40ºC~+250ºC
Nilai Daya: 50mW
Menyoroti:

NTC temperature sensor probe

,

10K platinum resistor sensor

,

100K NTC thermistor probe

NTC Temperature Sensor - 10K/100K Platinum Resistor Probe
Temperature Sensor Ntc Temperature Probe 10K 100K Platinum Resistor 0 Temperature Sensor Ntc Temperature Probe 10K 100K Platinum Resistor 1 Temperature Sensor Ntc Temperature Probe 10K 100K Platinum Resistor 2
Technical Specifications
Specification Name Scope Detection Condition
R25 (nominal resistance value) 5K, 8K, 10K, 15K to 100K Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%) ±1, ±2, ±3, ±5, ±10 Constant temperature 25ºC±0.05ºC
B25/50 or B25/85 (material coefficient) 2500~5000K Constant temperature 25ºC±0.05ºC
Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%) ±1, ±2 Constant temperature 25ºC±0.05ºC
Constant temperature 50ºC±0.05ºC
∫ (dissipation coefficient) ≥0.8mw/ºC Static in the air
T (thermal time constant) ≤25S Static in the air
Ta (Working temperature) -40ºC~+250ºC
Pn (rated power) 50mw Within working temperature
Customization Options

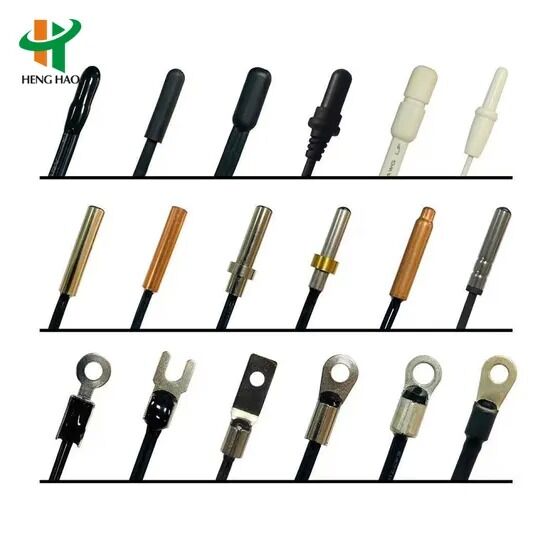

  • Case and head: Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
  • Lead wire: #24 30# 2651, UL4411 28#, double wired conductor and more, or according to client's request
  • Terminal: Can be riveted according to the requirements of various terminals
Our Services
  • Your inquiry will be replied within 12 hours
  • Well-trained and experienced staff are always at your service
  • Unique design products and many private mold products available
  • Strict protection of your private information and design ideas
Frequently Asked Questions
Q: Can I have a sample order for SENSOR?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on order quantity.
Q: Do you have any MOQ limit?
A: At least 1 for sample checking is available.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT (3-5 days). Airline and sea shipping also available.
Temperature Sensor Ntc Temperature Probe 10K 100K Platinum Resistor 3 Temperature Sensor Ntc Temperature Probe 10K 100K Platinum Resistor 4

Label:

100K NTC Thermistor Temperature Sensor,

100K Negative Temperature Coefficient Sensor,

Single End Glass Sealed Automotive Thermistor
