10K Temperature Probe 100K Temperature Sensor 10K 3950b Thermistor

10K Temperature Probe 100K Temperature Sensor 10K 3950b Thermistor
10K Temperature Probe 100K Temperature Sensor 10K 3950b Thermistor 10K Temperature Probe 100K Temperature Sensor 10K 3950b Thermistor 10K Temperature Probe 100K Temperature Sensor 10K 3950b Thermistor 10K Temperature Probe 100K Temperature Sensor 10K 3950b Thermistor 10K Temperature Probe 100K Temperature Sensor 10K 3950b Thermistor 10K Temperature Probe 100K Temperature Sensor 10K 3950b Thermistor

Gambar besar :  10K Temperature Probe 100K Temperature Sensor 10K 3950b Thermistor

Detail produk: Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1.000
Harga: 0.25
Kontak

10K Temperature Probe 100K Temperature Sensor 10K 3950b Thermistor

Deskripsi
Nomor Model.: NTC Jenis kontak: biasanya ditutup atau biasanya terbuka
Jenis sakelar: reset otomatis atau reset manual Paket Transportasi: 2000pcs/karton
Spesifikasi: 12*16 Resistansi Nominal: 5k, 8k, 10k, 15k hingga 100k
Varians Resistensi: ± 1, ± 2, ± 3, ± 5, ± 10 Koefisien material: 2500 ~ 5000K
Koefisien disipasi: ≥0,8mw/ºC Konstanta waktu termal: ≤25s
Suhu kerja: -40ºC~+250ºC Nilai Daya: 50mW
Kawat timah: #24 30#2651, UL4411 28# Kisaran suhu terbuka: -20ºC hingga 300ºC
Atur ulang kisaran suhu: 5ºC hingga 270ºC
Menyoroti:

10K NTC thermistor temperature sensor

,

100K temperature probe thermistor

,

3950b thermistor temperature sensor

10K Temperature Probe 100K Temperature Sensor 10K 3950b Thermistor
NTC Temperature Sensor Specifications
Specification Name Scope Detection Condition
R25 (nominal resistance value) 5K, 8K, 10K, 15K to 100K Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%) ±1, ±2, ±3, ±5, ±10 Constant temperature 25ºC±0.05ºC
B25/50 or B25/85 (material coefficient) 2500~5000K Constant temperature 25ºC±0.05ºC
Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%) ±1, ±2 Constant temperature 25ºC±0.05ºC
Constant temperature 50ºC±0.05ºC
∫ (dissipation coefficient) ≥0.8mw/ºC Static in the air
T (thermal time constant) ≤25S Static in the air
Ta (Working temperature) -40ºC~+250ºC
Pn (rated power) 50mw within working temperature
Customization Options

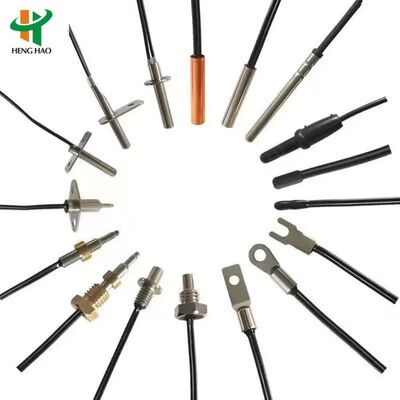

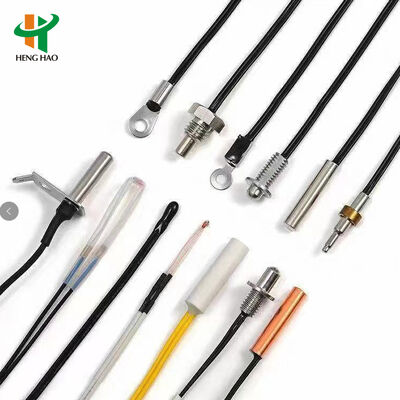

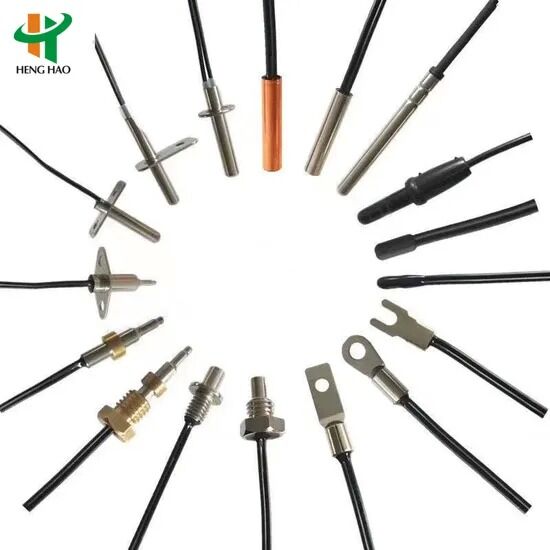

  • Case and head: Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
  • Lead wire: #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request
  • Terminal: Can be riveted according to the requirements of various terminals
10K Temperature Probe 100K Temperature Sensor 10K 3950b Thermistor 0 10K Temperature Probe 100K Temperature Sensor 10K 3950b Thermistor 1 10K Temperature Probe 100K Temperature Sensor 10K 3950b Thermistor 2
Our Services
  • Your inquiry will be replied within 12 hours
  • Well-trained and experienced staff are always at your service
  • Unique design products and many private mold product are waiting for your choice
  • Strictly protect your private information and your ideas of design
Frequently Asked Questions
Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.
Q3. Do you have any MOQ limit for led waterproof string order?
A: At least 1 for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
KSD301 Temperature Control Specifications
Temperature sensing components consist of bimetallic strip for precise temperature control.
Open temp. Reset temp. Open temp. Reset temp. Open temp. Reset temp.
-20ºC±5ºC 5ºC±5ºC 95ºC±5ºC 80ºC±5ºC 205ºC±5ºC 175ºC±10ºC
-15ºC±5ºC 5ºC±5ºC 100ºC±5ºC 80ºC±10ºC 210ºC±5ºC 180ºC±10ºC
-10ºC±5ºC 5ºC±5ºC 105ºC±5ºC 85ºC±10ºC 215ºC±5ºC 185ºC±10ºC
0ºC±5ºC -10ºC±5ºC 110ºC±5ºC 90ºC±10ºC 220ºC±5ºC 190ºC±10ºC
5ºC±5C -5ºC±5ºC 115ºC±5ºC 95ºC±10ºC 225ºC±5ºC 195ºC±10ºC
Applications

Widely used in household electric appliances including coffee pots, automatic toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, water dispensers, etc.

10K Temperature Probe 100K Temperature Sensor 10K 3950b Thermistor 3 10K Temperature Probe 100K Temperature Sensor 10K 3950b Thermistor 4

Label:

100K NTC Thermistor Temperature Sensor,

100K Negative Temperature Coefficient Sensor,

Single End Glass Sealed Automotive Thermistor
