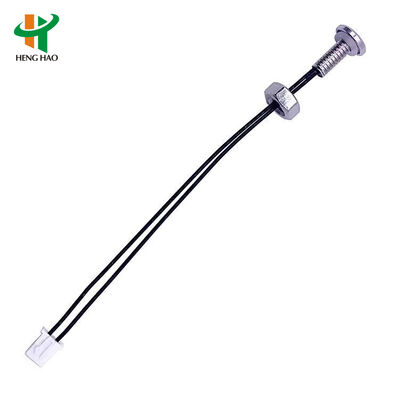

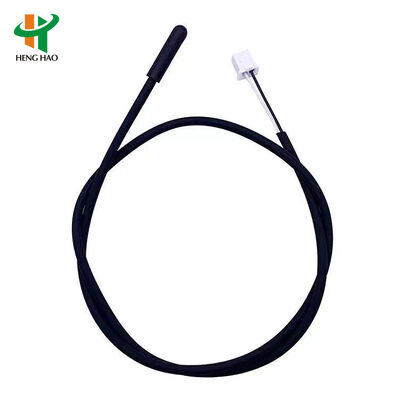

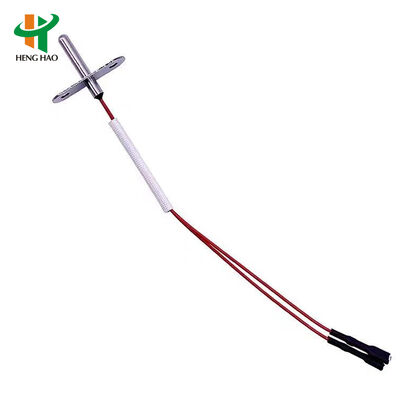

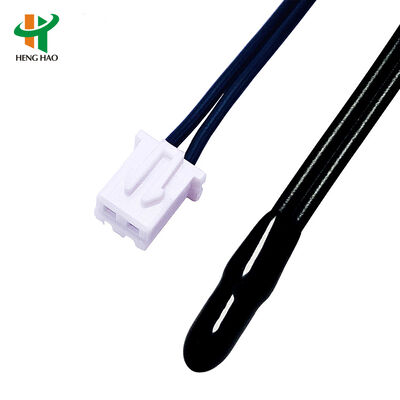

PT100 Temperature Sensing Wire Harness Ntc Temperature Probe Sensor

PT100 Temperature Sensing Wire Harness Ntc Temperature Probe Sensor
PT100 Temperature Sensing Wire Harness Ntc Temperature Probe Sensor PT100 Temperature Sensing Wire Harness Ntc Temperature Probe Sensor PT100 Temperature Sensing Wire Harness Ntc Temperature Probe Sensor PT100 Temperature Sensing Wire Harness Ntc Temperature Probe Sensor PT100 Temperature Sensing Wire Harness Ntc Temperature Probe Sensor PT100 Temperature Sensing Wire Harness Ntc Temperature Probe Sensor

Gambar besar :  PT100 Temperature Sensing Wire Harness Ntc Temperature Probe Sensor

Detail produk:
Sertifikasi: UL
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1.000
Harga: 0.2
Kontak

PT100 Temperature Sensing Wire Harness Ntc Temperature Probe Sensor

Deskripsi
Nomor Model.: NTC Sinyal keluaran: Tipe digital
Proses produksi: Epoksi Bahan: Logam Plastik atau Tembaga
Media pengukur: Suhu Nilai NTC: 3950K 3977K 3435K 3900K
Nilai PT: PT100, PT500, PT1000 Ukuran kawat: #26 #24 #22 2651 2468 1332...
Jenis Terminal: 2.54, pH2.0 Sesuai Permintaan Klien Kisaran Suhu: -10-500c
Resistansi Nominal: 5k, 8k, 10k, 15k hingga 100k Koefisien material: 2500 ~ 5000K
Koefisien disipasi: ≥0,8mw/ºC Konstanta waktu termal: ≤25s
Suhu kerja: -40ºC~+250ºC
Menyoroti:

PT100 temperature sensor wire harness

,

NTC temperature probe sensor

,

thermistor temperature sensor with warranty

PT100 Temperature Sensing Wire Harness NTC Temperature Probe Sensor
NTC Temperature Sensor Specifications
Specification Name Scope Detection Condition
R25 (nominal resistance value) 5K, 8K, 10K, 15K to 100K Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%) ±1, ±2, ±3, ±5, ±10 Constant temperature 25ºC±0.05ºC
B25/50 or B25/85 (material coefficient) 2500~5000K Constant temperature 25ºC±0.05ºC
Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%) ±1, ±2 Constant temperature 25ºC±0.05ºC
Constant temperature 50ºC±0.05ºC
∫ (dissipation coefficient) ≥0.8mw/ºC Static in the air
T (thermal time constant) ≤25S Static in the air
Ta (Working temperature) -40ºC~+250ºC
Pn (rated power) 50mw Within working temperature

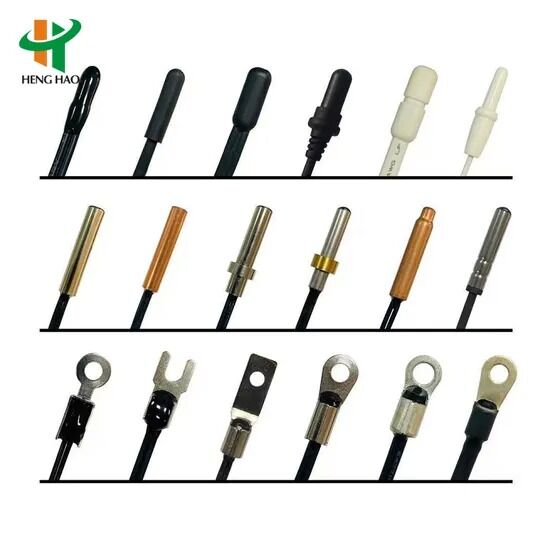

Case and head: Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
Lead wire: #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request
Terminal: Can be riveted according to the requirements of various terminals
PT100/PT500/PT1000 Temperature Sensor
Product name Specification
PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number PT100, CU50, PT1000, K, E, J, T etc.
Temperature range -50 to 500ºC
Chip imported from Heraeus - Germany
Temperature probe 304 stainless steel, plastic or other according to client's request
Accuracy Grade A Grade (0.1), B Grade(0.3), 2B Grade (0.5), 1/3 B Grade(0.1)
Temperature probe size 4*30mm, or according to client's request to design
Thermal time constant 0.5S
Lead wire options Three core sliver tetrafluoride shielded wire (-50~200ºC)
Silicone wire (-200~200ºC)
Three core high temperature wire (-40~450ºC)
Four fluorine wire (-50~150ºC)
Diameter 3mm~16mm
Terminal options Y type, Pin, XH2.54 or according to client's request
Level of protection IP68
PT100 Temperature Sensing Wire Harness Ntc Temperature Probe Sensor 0 PT100 Temperature Sensing Wire Harness Ntc Temperature Probe Sensor 1 PT100 Temperature Sensing Wire Harness Ntc Temperature Probe Sensor 2 PT100 Temperature Sensing Wire Harness Ntc Temperature Probe Sensor 3

Label:

100K NTC Thermistor Temperature Sensor,

100K Negative Temperature Coefficient Sensor,

Single End Glass Sealed Automotive Thermistor
