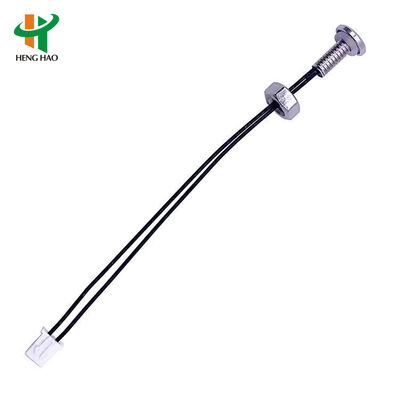

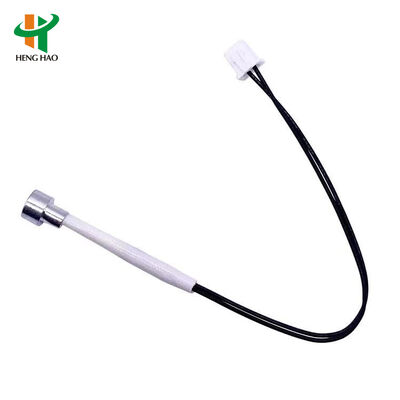

Coffee Maker Ntc Temperature Sensor 10K 50K 100K Thermal Sensor

Coffee Maker Ntc Temperature Sensor 10K 50K 100K Thermal Sensor
Coffee Maker Ntc Temperature Sensor 10K 50K 100K Thermal Sensor Coffee Maker Ntc Temperature Sensor 10K 50K 100K Thermal Sensor Coffee Maker Ntc Temperature Sensor 10K 50K 100K Thermal Sensor Coffee Maker Ntc Temperature Sensor 10K 50K 100K Thermal Sensor Coffee Maker Ntc Temperature Sensor 10K 50K 100K Thermal Sensor Coffee Maker Ntc Temperature Sensor 10K 50K 100K Thermal Sensor

Gambar besar :  Coffee Maker Ntc Temperature Sensor 10K 50K 100K Thermal Sensor

Detail produk:
Sertifikasi: RoHS
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1.000
Harga: 0.5
Kontak

Coffee Maker Ntc Temperature Sensor 10K 50K 100K Thermal Sensor

Deskripsi
Nomor Model.: NTC Jenis kontak: Tanpa kontak
Sinyal keluaran: Termistor Proses produksi: Injeksi
Bahan: Litium Klorida Resistif Media pengukur: Suhu
Peringkat Ip: IP65 Bahan kepala: Tabung Logam atau Plastik
nilai B: 3950K 3435K 3977K PT100 Resistansi Nominal: 5k, 8k, 10k, 15k hingga 100k
Suhu kerja: -40ºC~+250ºC Nilai Daya: 50mW
Konstanta waktu termal: ≤25s Koefisien disipasi: ≥0,8mw/ºC
Nilai akurasi: Kelas A (0,1), Kelas B (0,3), Kelas 2B (0,5), Kelas 1/3 B (0,1)
Menyoroti:

NTC thermistor temperature sensor 10K

,

Coffee maker thermal sensor 50K

,

NTC temperature sensor 100K

Coffee Maker NTC Temperature Sensor 10K 50K 100K Thermal Sensor
NTC Temperature Sensor Specifications
Specification Name Scope Detection Condition
R25 (nominal resistance value) 5K, 8K, 10K, 15K to 100K Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%) ±1, ±2, ±3, ±5, ±10 Constant temperature 25ºC±0.05ºC
B25/50 or B25/85 (material coefficient) 2500~5000K Constant temperature 25ºC±0.05ºC
Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%) ±1, ±2 Constant temperature 25ºC±0.05ºC
Constant temperature 50ºC±0.05ºC
∫ (dissipation coefficient) ≥0.8mw/ºC Static in the air
T (thermal time constant) ≤25S Static in the air
Ta (Working temperature) -40ºC~+250ºC
Pn (rated power) 50mw Within working temperature

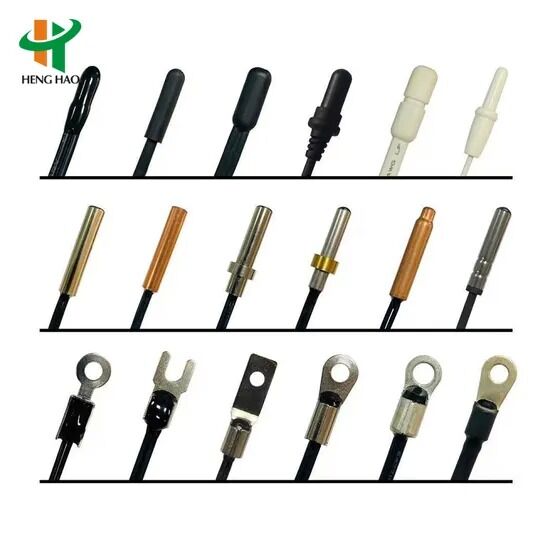

Case and head Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
Lead wire #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request
Terminal Can be riveted according to the requirements of various terminals

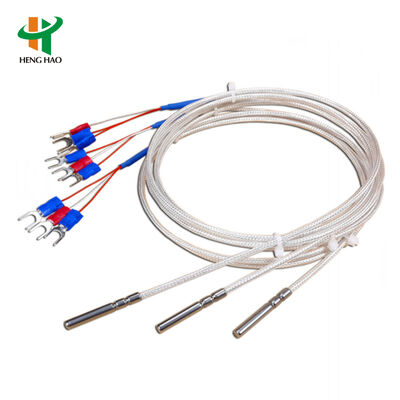

PT100/PT500/PT1000 Temperature Sensor
Product name PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number PT100, CU50, PT1000, K, E, J, T etc.
Temperature range -50 to 500ºC
Chip imported from Heraeus - Germany
Temperature probe 304 stainless steel, plastic or other according to client's request
Accuracy Grade A Grade (0.1), B Grade(0.3), 2B Grade (0.5), 1/3 B Grade(0.1)
Temperature probe 4*30mm, or according to client's request to design
Thermal time constant 0.5S
Lead wire Three core sliver tetrafluoride shielded wire (-50~200ºC)
Silicone wire (-200~200ºC)
Three core high temperature wire (-40~450ºC)
Four fluorine wire (-50~150ºC)
Dia 3mm~16mm
Terminal Y type, Pin, XH2.54 or according to client's request
Level of protection IP68
Coffee Maker Ntc Temperature Sensor 10K 50K 100K Thermal Sensor 0 Coffee Maker Ntc Temperature Sensor 10K 50K 100K Thermal Sensor 1 Coffee Maker Ntc Temperature Sensor 10K 50K 100K Thermal Sensor 2 Coffee Maker Ntc Temperature Sensor 10K 50K 100K Thermal Sensor 3
Our Services
  • Your inquiry will be replied within 12 hours
  • Well-trained and experienced staff are always at your service
  • Unique design products and many private mold product are waiting for your choice
  • Strictly protect your private information and your ideas of design
Frequently Asked Questions
Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.
Q3. Do you have any MOQ limit for led waterproof string order?
A: At least 1 for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Coffee Maker Ntc Temperature Sensor 10K 50K 100K Thermal Sensor 4 Coffee Maker Ntc Temperature Sensor 10K 50K 100K Thermal Sensor 5
