3D Print Mini Ntc Temperature Sensor 3950K 3435K Mini Thermocouple

Gambar besar : 3D Print Mini Ntc Temperature Sensor 3950K 3435K Mini Thermocouple

Detail produk:

Sertifikasi:	RoHS

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1.000
Harga:	0.5

Kontak

3D Print Mini Ntc Temperature Sensor 3950K 3435K Mini Thermocouple

Deskripsi

Nomor Model.:	NTC	Jenis kontak:	Tanpa kontak
Sinyal keluaran:	Termistor	Proses produksi:	Injeksi
Bahan:	Litium Klorida Resistif	Peringkat Ip:	IP65
Tipe kepala:	Tabung Logam atau Plastik	nilai B:	3950K 3435K 3977K PT100
Resistansi Nominal:	5k, 8k, 10k, 15k hingga 100k	Suhu kerja:	-40ºC~+250ºC
Nilai Daya:	50mW	Konstanta waktu termal:	≤25s
Koefisien disipasi:	≥0,8mw/ºC	Nilai akurasi:	Kelas A (0,1), Kelas B (0,3), Kelas 2B (0,5), Kelas 1/3 B (0,1)
Kisaran Suhu:	-50 hingga 500ºC
Menyoroti:	Mini NTC temperature sensor 3950K , 3D print thermocouple sensor 3435K , NTC thermistor sensor with warranty

3D Print Mini NTC Temperature Sensor 3950K 3435K Mini Thermocouple

NTC Temperature Sensor Specifications

Specification Name	Scope	Detection Condition
R25 (nominal resistance value)	5K, 8K, 10K, 15K to 100K	Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%)	±1, ±2, ±3, ±5, ±10	Constant temperature 25ºC±0.05ºC
B25/50 or B25/85 (material coefficient)	2500~5000K	Constant temperature 25ºC±0.05ºC Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%)	±1, ±2	Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC
∫ (dissipation coefficient)	≥0.8mw/ºC	Static in the air
T (thermal time constant)	≤25S	Static in the air
Ta (Working temperature)	-40ºC~+250ºC
Pn (rated power)	50mw	Within working temperature

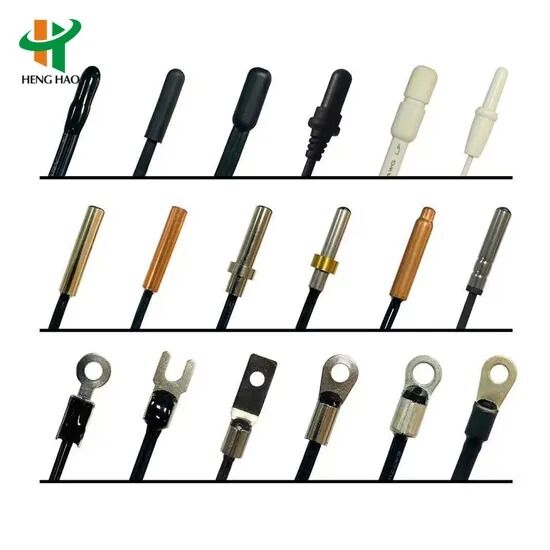

Case and head	Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
Lead wire	#24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request
Terminal	Can be riveted according to the requirements of various terminals

PT100/PT500/PT1000 Temperature Sensor

Product name	PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number	PT100, CU50, PT1000, K, E, J, T etc.
Temperature range	-50 to 500ºC
Chip imported from	Heraeus - Germany
Temperature probe	304 stainless steel, plastic or other according to client's request
Accuracy Grade	A Grade (0.1), B Grade(0.3), 2B Grade (0.5), 1/3 B Grade(0.1)
Temperature probe size	4*30mm, or according to client's request to design
Thermal time constant	0.5S
Lead wire	Three core sliver tetrafluoride shielded wire (-50~200ºC) Silicone wire (-200~200ºC) Three core high temperature wire (-40~450ºC) Four fluorine wire (-50~150ºC)
Diameter	3mm~16mm
Terminal	Y type, Pin, XH2.54 or according to client's request
Level of protection	IP68

Our Services

Your inquiry will be replied within 12 hours
Well-trained and experienced staff are always at your service
Unique design products and many private mold product are waiting for your choice
Strictly protect your private information and your ideas of design

Frequently Asked Questions

Q1. Can I have a sample order for SENSOR?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.

Q3. Do you have any MOQ limit for led waterproof string order?

A: At least 1 for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
