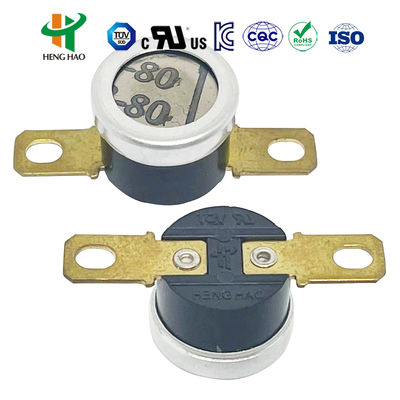

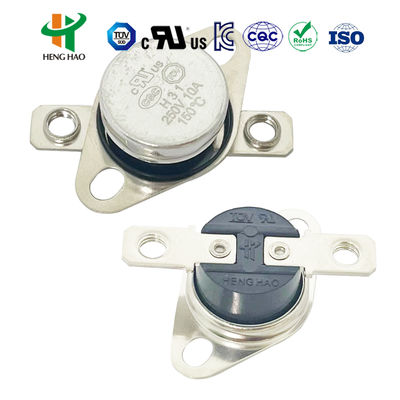

KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles

KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles
KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles
KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles

Gambar besar :  KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles

Detail produk:
Tempat asal: CINA
Nama merek: HENGHAO
Sertifikasi: UL
Nomor model: H31
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1000 pcs
Harga: USD 0.3~0.5PCS
Kemasan rincian: 2000pcs/karton
Waktu pengiriman: 10 ~ 15 hari kerja
Syarat-syarat pembayaran: T/t
Menyediakan kemampuan: 1000000pcs per bulan
Kontak

KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles

Deskripsi
Siklus hidup: 100000 siklus Tegangan & Arus: 250v 16a
Jenis kontak: biasanya ditutup atau biasanya terbuka Jenis sakelar: reset otomatis atau reset manual
Kisaran suhu: 0-250 ℃ kasus: Logam
Menyoroti:

250V 16A Bimetal Thermostat

,

Coffee Pots Temperature Controller

,

Automatic Toasters KSD301 Thermostat

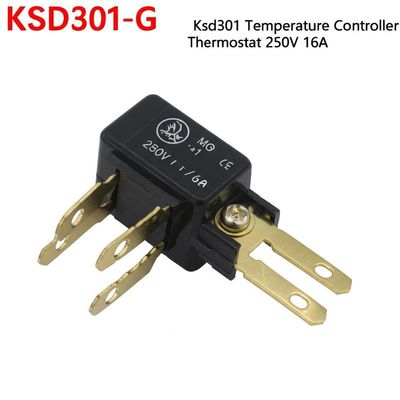

KSD301-G Ksd301 Temperature Controller Thermostat 250V 16A
The KSD301 temperature protector operates on the principle of bimetal discs that snap into action with temperature changes. This snap action activates the internal contacts to open or close the circuit. Key features include fixed working temperature, reliable snap action, minimal flashover, long service life, and low radio interference.
Download KSD301 Specifications (PDF) KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles 0
Technical Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open
Mounting bracket Two types: movable or immovable
Terminal type a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
Housing Plastic or ceramic
Temperature sensor face Aluminum cap or copper head
Reset Types
Manual Reset Type: Requires pressing a reset button to reconnect the circuit after temperature drops approximately 20°C from the action point. Recommended reset force is 4-6N.
Auto Reset Type: Automatically reconnects when temperature drops to the reset point without manual intervention.
Applications
Widely used for temperature control in household appliances including coffee pots, toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, and water dispensers.
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
10℃±5℃ 0℃±5℃ 120℃±5℃ 100℃±10℃ 230℃±5℃ 200℃±10℃
15℃±5℃ 5℃±5℃ 125℃±5℃ 105℃±10℃ 235℃±5℃ 205℃±10℃
20℃±5℃ 5℃±5℃ 130℃±5℃ 110℃±10℃ 240℃±5℃ 210℃±10℃
25℃±5℃ 10℃±5℃ 135℃±5℃ 115℃±10℃ 245℃±5℃ 215℃±10℃
30℃±5℃ 15℃±5℃ 140℃±5℃ 120℃±10℃ 250℃±5℃ 220℃±10℃
Custom temperature settings available according to client requirements.
Certifications: UL, CQC, TUV and RoHS approved.
KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles 1

Label:

ksd301 thermal switch,

bimetal snap disc thermostat,

ksd301 temperature switch
