High Precision NTC Thermistor Temperature Sensor with 500Ω~5MΩ Resistance Range and 2500~5000K Material Coefficient

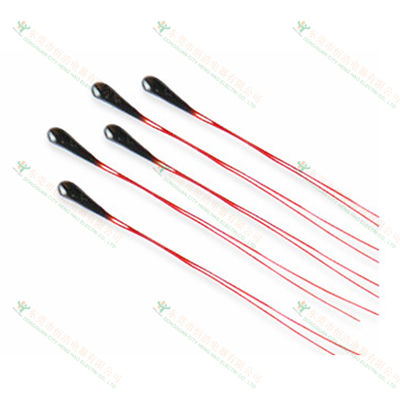

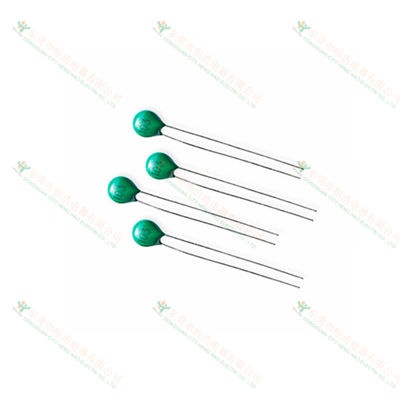

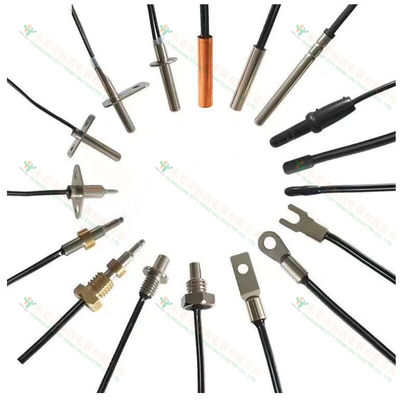

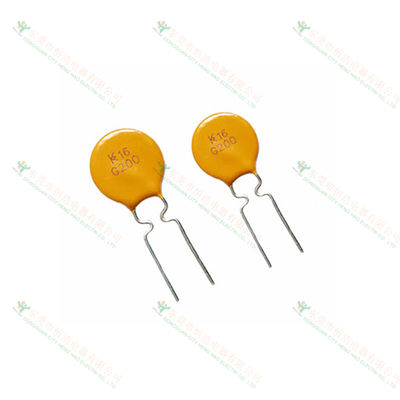

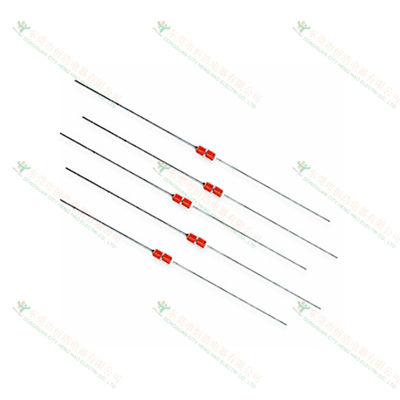

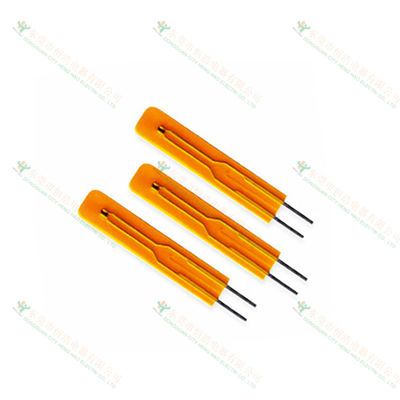

Gambar besar : High Precision NTC Thermistor Temperature Sensor with 500Ω~5MΩ Resistance Range and 2500~5000K Material Coefficient

Detail produk:

Tempat asal:	CINA
Nama merek:	HENG HAO
Nomor model:	Termistor NTC

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	5000
Harga:	$0.18-0.25

Kontak

High Precision NTC Thermistor Temperature Sensor with 500Ω~5MΩ Resistance Range and 2500~5000K Material Coefficient

Deskripsi

Suhu operasi:	-40 ℃ ~ + 120 ℃	Resistansi Nominal:	500Ω ~ 5mΩ
Toleransi Resistensi:	± 1, ± 2, ± 3, ± 5, ± 10	Koefisien material:	2500 ~ 5000K
Konstanta waktu termal:	≤25s	Koefisien disipasi:	≥0.8mw/℃
Kekuatan Dinilai:	50mW	Jenis Paket:	Dudukan permukaan
Teknologi:	Paduan logam	Nilai B25/50:	± 1, ± 2
Suhu konstan:	25 ℃ ± 0,05 ℃	Sensitivitas termal:	Suhu konstan 50 ℃ ± 0,05 ℃
Suhu kerja:	-40 ℃ ~ + 120 ℃	Kisaran resistensi:	500Ω ~ 5mΩ
Peringkat kekuatan:	50mW
Menyoroti:	500Ω~5MΩ NTC Thermistor , 2500~5000K Temperature Sensor , ±1 , ±2 , ±3 , ±5 , ±10 Thermal Resistor

High Quality NTC Thermistor Sensor for Induction Cookers

Technical Specifications

Parameter	Value
R25 (Nominal Resistance Value)	500Ω~5MΩ, Constant temperature 25℃±0.05℃
R25 Permissible Variance (%)	±1,±2, ±3, ±5, ±10, Constant temperature 25℃±0.05℃
B25/50 (Material Coefficient)	2500~5000K, Constant temperature 25℃±0.05℃, 50℃±0.05℃
B25/50 Value Permissible Variance (%)	±1,±2, Constant temperature 25℃±0.05℃, 50℃±0.05℃
∫ (Dissipation Coefficient)	≥0.8mw/℃, Static in the air
T (Thermal Time Constant)	≤25S, Static in the air
Ta (Working Temperature)	-40℃~+120℃
Pn (Rated Power)	50mw, within working temperature
