M14*1.5 Contact Thread Wiper KSD302 Thermostat With Nut

55~125 Degrees Industrial KSD302 Thermostat With Nut For Wiper

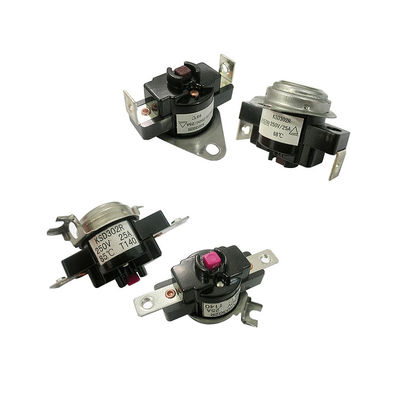

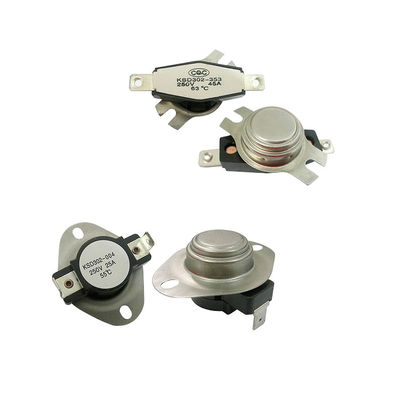

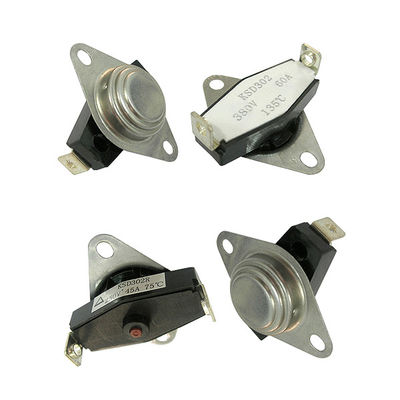

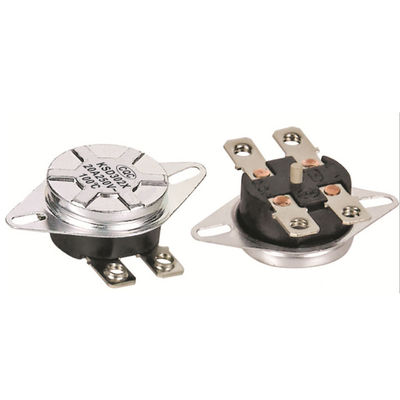

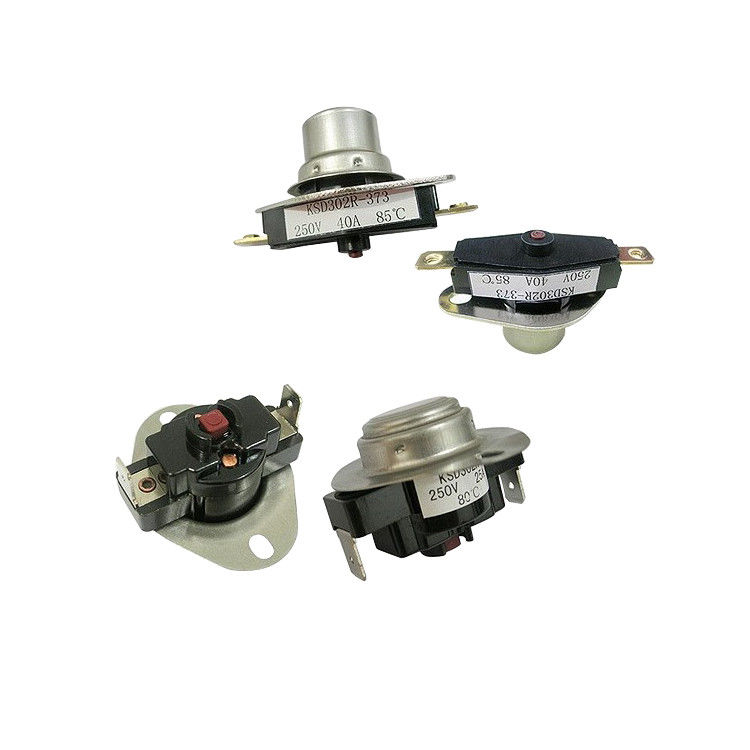

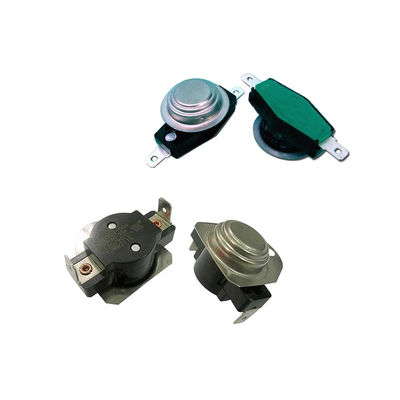

KSD302 large current thermostat’s specification

(1) Function: temperature protection and overheating protection, prevent dry heating

(2) The electrical characteristics: AC250V ~ 400 V / 15 A ~ 60 A

(3) the highest environment temperature: 180 °C

(4) working temperature range: 0 °C ~ 250 °C (optional). Temperature tolerance: +- 5

(5) Normal headscarf insulation resistance: > 100 M Ω

(6) normal contact resistance: more than 100 m Ω

(7) service life: > 50000 times

Application of KSD302 large current temperature protector

(1) Electric welding machine, electric

(2) Electric equipment,

(3) Electric products,

(4) Steam heater

(5) High power machinery equipment

(6) Demand Water Heaters

 Attention of KSD302 large current thermostat

(1) By using the contact temperature type when installed, should make metal cap surface adhere is accused of mounting surface of the appliance.

(2) When installation shall not cover surface pressure deformation, lest affect performance.

(3) To prevent leakage, when using, can't let the fluid infiltration within the thermostat, lest affect electric reliability.

(4) This product for bipolar type wiring way, when using, according to mark symbol, correct connection.

The product should be a headscarf in relative humidity is less than 90%, the environment temperature below 40 ℃ ventilation, clean, dry, no corrosive gas storage in the warehouse.

Thread copper head thermostat / Thread copper head thermal protector

Thread copper head thermostat’s Principle and structure

Utilize overseas high-quality dished dual metallic piece as temperature gathering element, will switch installed in water temperature the temperature sensitive parts, dynamic collection the temperature change of the water tank, through the disc in metal temperature deformation, and transient temperature points in beating principle, with institutions in the role of the two contacts quickly switched on, start fan, cooling water of the water, of automobile engine have security role.

Thread copper head thermal protector’s use conditions

2.1. relative humidity in + 20 ℃ environment give 95%

2.2. Atmospheric pressure Kpa 86-106

2.3. Working location: any

3. Thread copper head temperature protector’s specification

4. Installation and size

1.     Noted and attention

1.1. Before installation, please check whether the product specification and your engine photograph to suit;

1.2. The product installation must be approved by a professional maintenance personnel for installation.
